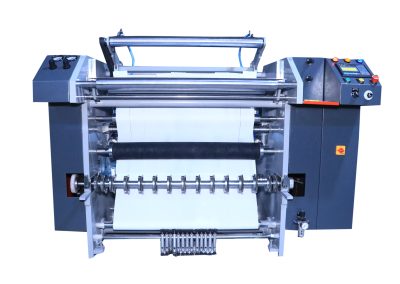

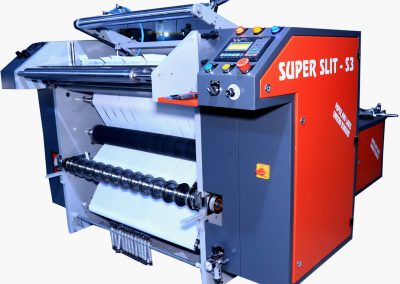

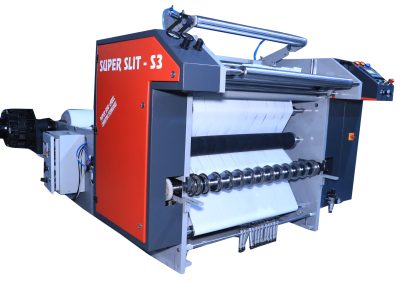

THERMAL PAPER SLITTER REWINDER MACHINE
THERMAL PAPER SLITTER REWINDER MACHINE
PRECISION SLITTING & REWINDING FOR POS, ATM & BILLING ROLLS
The Thermal Paper Slitter Rewinder Machine is purpose-built for high-speed conversion of jumbo thermal rolls into smaller rolls required for POS systems, ATM machines, billing systems, ticketing, and lottery terminals. Engineered for consistency, productivity, and operator convenience, it combines robust mechanical design, automated handling systems, and advanced controls to ensure precise roll finishing every time. Whether producing core-based rolls or coreless formats, the machine guarantees tight winding, smooth edges, and accurate length control– making it a trusted choice for converters and stationery manufacturers worldwide.
The Thermal Paper Slitter Rewinder Machine is purpose-built for high-speed conversion of jumbo thermal rolls into smaller rolls required for POS systems, ATM machines, billing systems, ticketing, and lottery terminals. Engineered for consistency, productivity, and operator convenience, it combines robust mechanical design, automated handling systems, and advanced controls to ensure precise roll finishing every time. Whether producing core-based rolls or coreless formats, the machine guarantees tight winding, smooth edges, and accurate length control– making it a trusted choice for converters and stationery manufacturers worldwide.
THERMAL PAPER SLITTER REWINDER MACHINE Key Features
VIBRATION-FREE HIGH-SPEED OPERATION- PNEUMATIC REEL LOADING SYSTEM
- TAPELESS REWINDING TECHNOLOGY
- AUTO GUMMING & CUTTING SYSTEM
- CORE & CORELESS REWINDING FLEXIBILITY
- BANANA ROLLER (SPREADER ROLLER)
- PEN MARKING SYSTEM
- PLC + HMI CONTROL SYSTEM
- PERFECT ROLL QUALITY WITH TENSION CONTROL
- INTEGRATED WASTE MANAGEMENT SYSTEM
Built on a rigid heavy-duty structural frame, the machine guarantees complete stability and vibration-free running, even during continuous production at speeds of up to 150 m/min. This robust design not only ensures high precision in slitting and rewinding but also extends the machine’s lifespan by reducing wear and tear. The result is consistent roll quality, superior accuracy, and maximum productivity– even in demanding, long-duration operations.
Handling heavy jumbo rolls manually can slow down operations and pose risks to operators. To solve this, the machine integrates an pneumatic or hydraulic reel loading system. This allows jumbo rolls to be lifted and mounted effortlessly, eliminating manual strain, reducing setup time, and ensuring smooth, vibration-free unwinding during production.
Unlike conventional machines that require adhesive tape at the start of rewinding, this advanced model offers a tapeless start mechanism. Rolls begin winding automatically on the core or directly in coreless mode without wasting paper or tape. This reduces setup wastage, improves operational efficiency, and ensures smooth, uninterrupted production cycles.

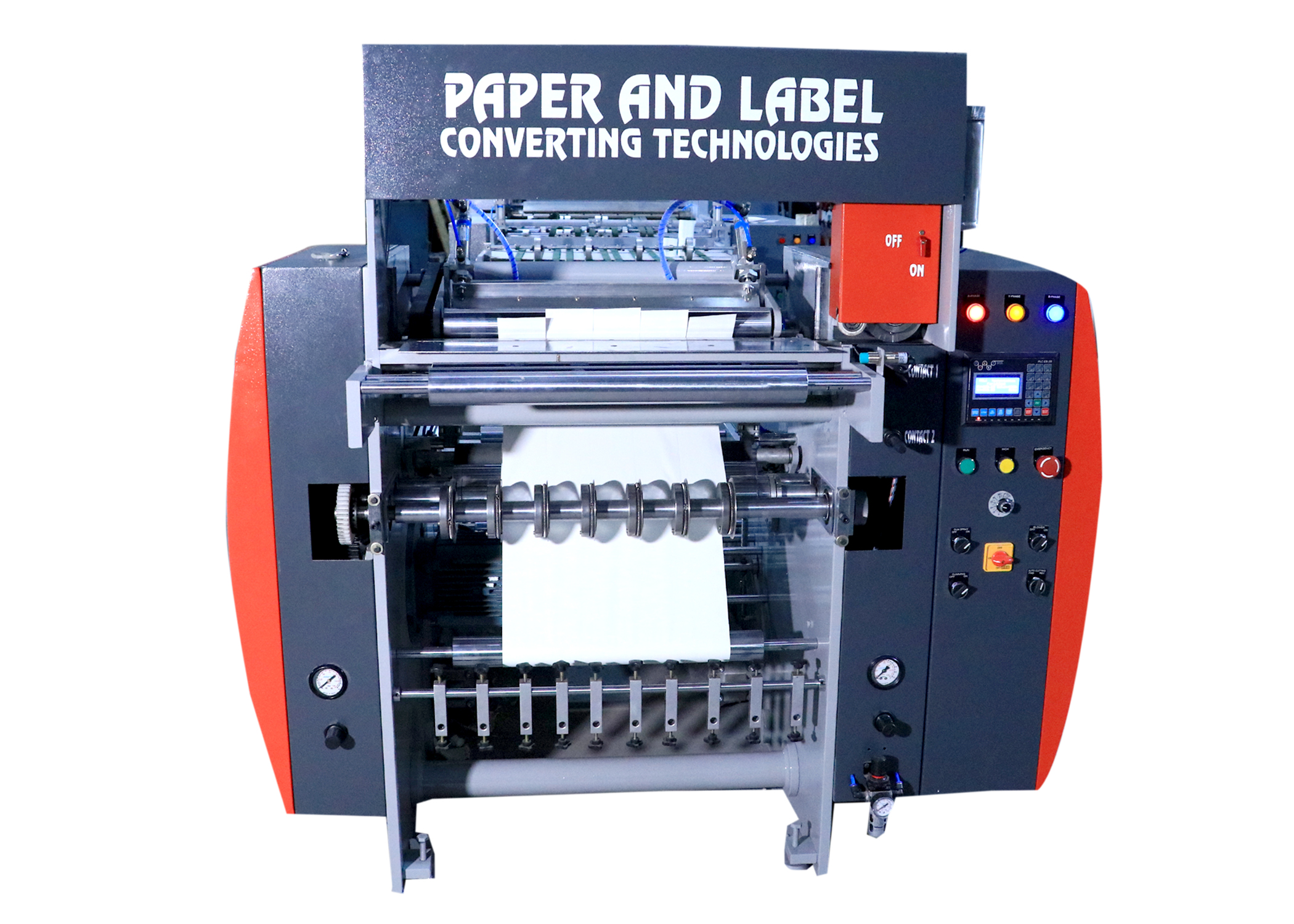

Once the machine reaches the pre-set meter length , it automatically comes to a safe stop. The operator then transfers the rewind shaft onto the rolling tray support. As soon as the shaft is positioned, a sensor-controlled system activates, applying a precise layer of adhesive gum and executing a clean, uniform cut across the web. This smart automation reduces manual effort, speeds up finishing, and guarantees a professional, high-quality output every time.
One of the most versatile features of this machine is its ability to rewind with or without paper cores. Traditional rolls can be produced on standard paper cores, while coreless rewinding offers a cost-effective, eco-friendly alternative, reducing raw material usage and meeting diverse customer requirements in the market.
The banana roller ensures wrinkle-free, smooth web handling by gently spreading the paper during slitting and rewinding. Especially valuable for thermal paper and lightweight substrates, it prevents creases, eliminates air pockets, and delivers perfectly finished rolls with clean edges at high speeds.
The optional pen marking unit ensures precise roll identification by applying marks at predefined meter lengths, fully synchronized with the machine’s counter. With a 2-way system , marks can be placed at either the start or end of each roll , making tracking effortless. Operated through pneumatic control , it delivers fast, reliable, and consistent marking for batch coding, QC reference, or roll handling efficiency.
The heart of the machine is its PLC-based control panel with touchscreen HMI interface, designed for user-friendly operation. Operators can set roll length, monitor production, and control all parameters from a single screen. Integrated with a digital meter counter, it ensures precise length measurement and triggers automatic stop functions at defined roll lengths, guaranteeing accuracy and reducing operator workload.
The machine uses advanced dancing roller pneumatic/electronic operated tension control management systems to ensure rolls are wound evenly with tight edges and consistent density. Whether working on lightweight thermal grades or heavier substrates, the machine produces flawless rolls that run smoothly in end-use applications like POS printers and ATMs.
Equipped with a trim blower system, the machine automatically removes edge trims and fine paper dust generated during slitting. This not only keeps the working environment clean but also enhances the surface quality and printability of the final thermal rolls by preventing contamination.
THERMAL PAPER SLITTER REWINDER MACHINE Optional Accessories
- WEB GUIDE
- AUTOMATIC ROLL PACKING SYSTEM
- AUTO SHAFTING & AUTO HAMMERING
- AUTO CORE FEEDER
- SINGLE-COLOR FLEXO PRINTING ATTACHMENT
For customers working with pre-printed thermal rolls , a precision web guiding system ensures the paper runs perfectly aligned from start to finish. This eliminates edge shifting, preserves logo or text positioning, and guarantees that barcodes or branding remain exactly where they should be—resulting in premium-quality finished rolls every time.
Streamline your workflow with a fully automatic roll packing line that directly integrates with the rewinder. Once rolls are completed, they are automatically wrapped, sealed, and prepared for dispatch—dramatically reducing manual labour, speeding up packaging operations, and ensuring every roll leaves your facility in a professional, ready-to-ship condition.
Take efficiency to the next level with automatic shaft loading and locking systems. The auto shafting unit eliminates manual effort by automatically positioning shafts into the rewinder, while the auto hammering system ensures quick, secure core locking at the press of a button. Together, they cut down changeover time, minimize operator fatigue, and maximize machine uptime.
A game-changer for high-speed, continuous production, the automatic core feeder supplies paper cores directly into position without manual handling. This not only ensures consistent roll quality but also keeps production running without unnecessary interruptions- making it ideal for large-volume operations.
Add value to your thermal rolls with an inline single-color flexo printing unit. Perfect for applying brand logos, security marks, colored stripes, or simple identifiers, this system allows customization without a separate printing process. It transforms plain rolls into branded products, creating new revenue opportunities while saving time and cost.
THERMAL PAPER SLITTER REWINDER MACHINE Technical Specifications
| Specification | Details |
|---|---|
| Working Width | 550 mm, 800 mm, 1000 mm |
| Parent Reel Dia | 1000 mm |
| Minimum Rewind Core Dia | 13 mm |
| Finish Roll Dia | Up to 200 mm |
| Drive | 3 H.P., 5 H.P., 7.5 H.P. |
| Speed | 150 Meter per Min |
| Loading of Reel | Pneumatic |

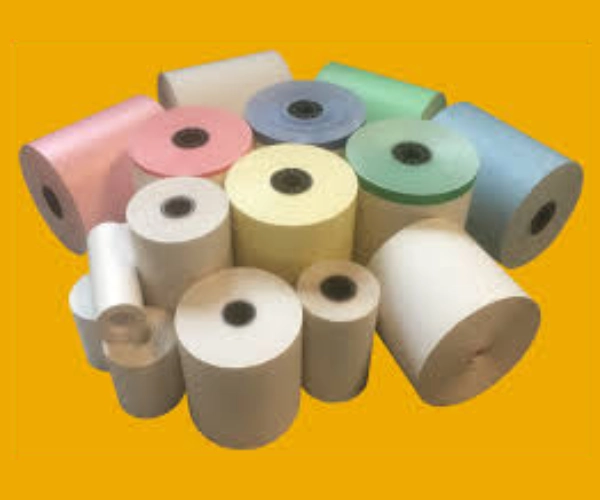

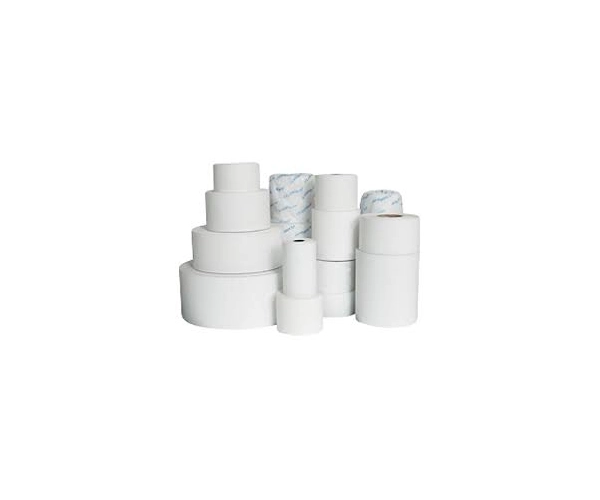

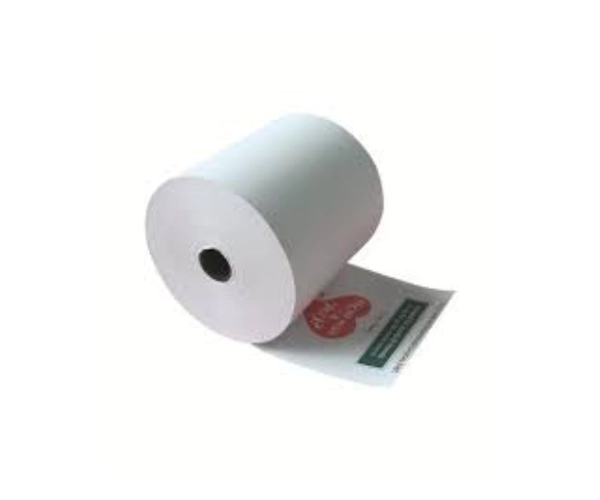

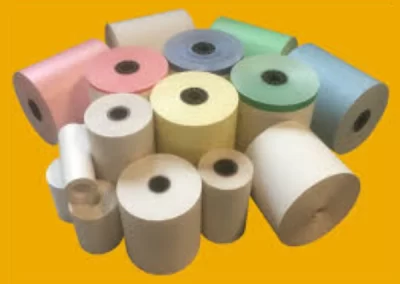

THERMAL PAPER SLITTER REWINDER MACHINE Product Samples
