HYBRID OFFSET PRINTING MACHINE
HYBRID OFFSET PRINTING MACHINE

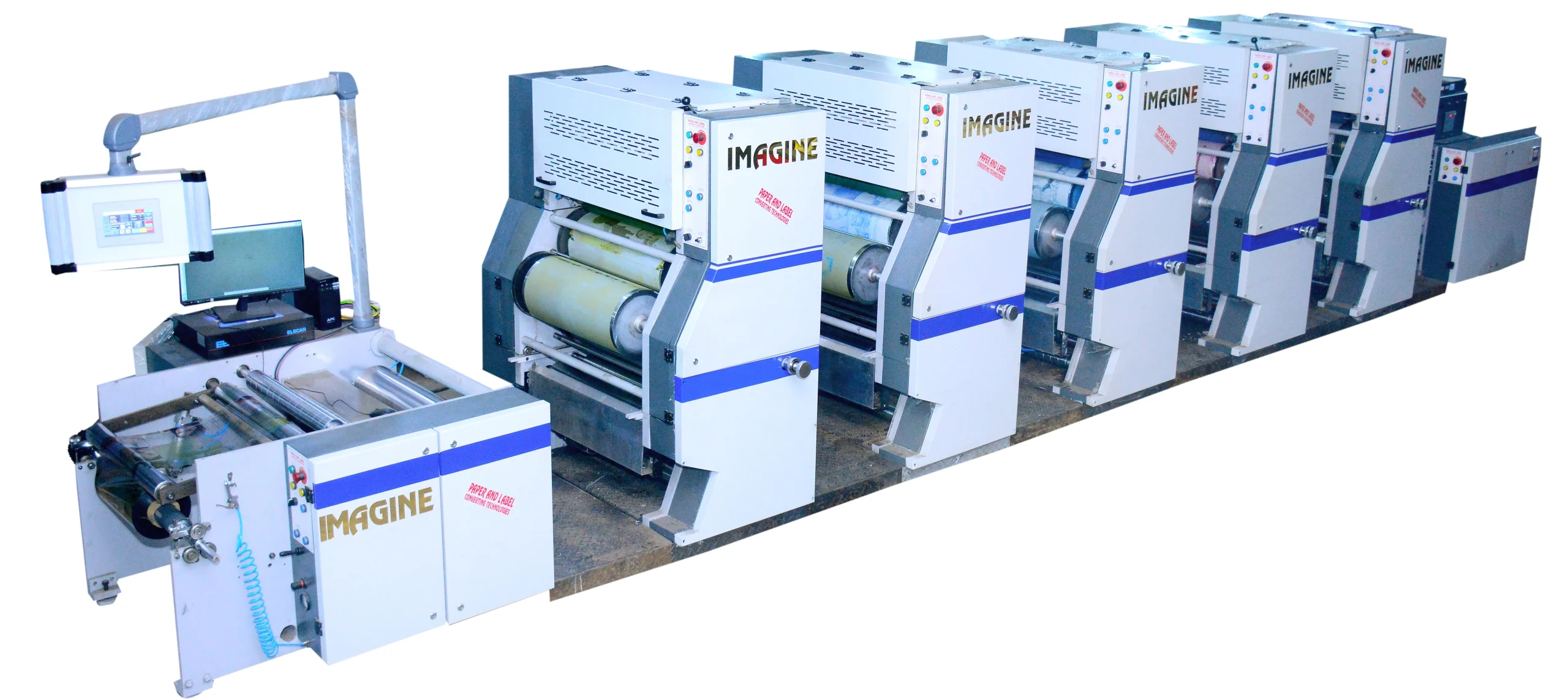

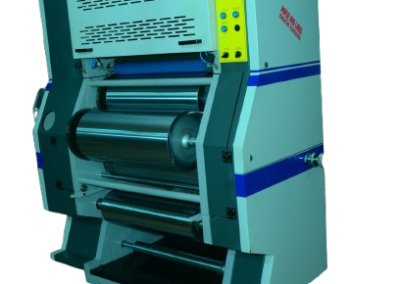

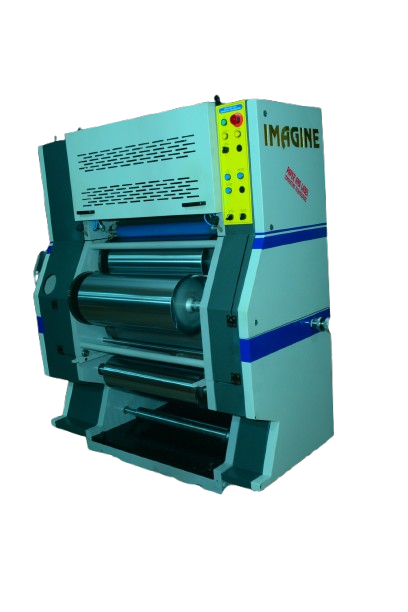

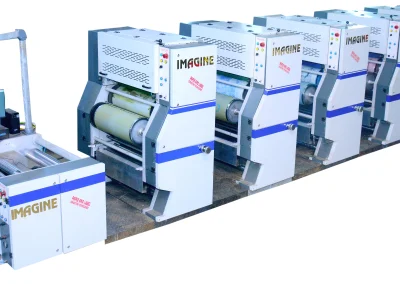

IMAGINE PRINTING MACHINE is a hybrid printing platform specially designed for printing flexible packaging film, label stickers, mono cartons, paper, and foil applications. Flexibility, versatility &and sustainability are key factors of the Imagine offset press. It is used to print roll to roll, roll to sheet. The imagine hybrid printing machine can be customized according to customer’s demands in various widths and colours. It excels at short to medium-print jobs at the highest print quality while being the most sustainable choice in the printing industry.
HYBRID OFFSET PRINTING MACHINE Key Features
EXCEPTIONAL PRINT QUALITY- LOWER PREPRESS & PLATE COSTS
- SINGLE-OPERATOR EFFICIENCY
- INLINE MULTI-PROCESS INTEGRATION
- REDUCED WASTE & INK CONSUMPTION
- FASTER JOB CHANGEOVERS
- LOWER POWER & ENVIRONMENTAL IMPACT
- PERFECT FOR SHORT TO MEDIUM RUNS
- FUTURISTIC, MODULAR DESIGN
- BETTER LONG-TERM ROI
- BETTER TOTAL COST OF OWNERSHIP
Hybrid offset printing offers superior control over dot gain, ensuring sharper image reproduction and consistent color accuracy throughout the run. Unlike gravure, which relies on engraved cells that limit tonal range, offset maintains the integrity of fine details, smooth gradients, and ultra-sharp text. The result is stunning photographic clarity and precise brand colors—print after print.
Unmatched for premium packaging where detail, consistency, and visual impact are critical
Unmatched for premium packaging where detail, consistency, and visual impact are critical
Unlike rotogravure, which requires costly engraved cylinders, hybrid offset uses affordable offset plates. These plates are not only significantly cheaper but also faster to produce- cutting down setup times and allowing you to handle short to medium runs profitably. It’s a smarter investment for converters dealing with frequent design changes or variable SKUs.
One of the standout advantages of our hybrid offset system is that it’s designed to be run by a single operator. In contrast, gravure presses typically require three to four operators for setup, registration, and maintenance. With intuitive controls, auto-register, and tension management, your labor cost drops while productivity increases—without compromising quality or consistency.
This machine combines offset, flexo, UV/EB curing, and finishing—all in one pass. Whether it’s cold foil, lamination, reverse printing, or spot coating, everything can be done inline. This eliminates the need for multiple machines and reduces production time, material handling, and errors.
With precise ink control and faster register setup, hybrid offset minimizes startup wastage and ensures efficient ink usage. Compared to gravure and flexo systems, this means lower ink costs and significantly less waste material—translating into direct savings and a more sustainable operation.
Changing from one job to another is fast and seamless. Plates are easier to mount and replace than gravure cylinders, and automated controls help reduce downtime. This is ideal for short-run, fast-moving packaging markets where turnaround speed is critical.
UV or EB curing eliminates the need for large drying ovens, reducing energy consumption and environmental load. The absence of solvents and reduced VOC emissions make it a cleaner, safer, and more eco-friendly printing solution—something brands and regulators increasingly demand.
Gravure is only economical at very high volumes due to its long setup times and expensive cylinders. In contrast, hybrid offset thrives in short to medium-run production, offering fast makeready, low setup costs, and quick job changeovers. It’s ideal for converters handling diverse SKUs, seasonal products, or frequent design updates.
Our hybrid machine is built with a future-ready architecture, allowing you to add additional printing or converting units as your needs grow. Whether it’s an extra flexo unit, a digital module, or an inline cold foil station, you can easily upgrade without replacing the entire system. It’s a scalable solution built for long-term value.
By combining lower operating costs, reduced labor, and higher versatility, hybrid offset offers a superior total cost of ownership. It enables you to serve a wider range of markets—flexible packaging, mono cartons, labels, and more—with confidence and efficiency.
Over time, hybrid offset proves significantly more cost-effective. You save on manpower, prepress, energy, waste, and space—all while delivering superior output. Whether you’re printing flexible packaging, labels, or mono cartons, it’s a future-ready solution designed for quality, speed, and profitability.
HYBRID OFFSET PRINTING MACHINE Accessories & Optional Upgrades
- CORONA TREATMENT SYSTEM
- MULTIPLE DRYING TECHNOLOGIES
- CAMERA-BASED WEB INSPECTION SYSTEM
- AUTOMATIC BLANKET WASHING SYSTEM
- INSETTING / 2ND WEB PASS CAPABILITY
- TURNBAR FOR REVERSE PRINTING
- INLINE DIE CUTTING UNIT
- SHEETER / CONVEYOR UNIT
- FULLY MODULAR, CUSTOMIZABLE CONFIGURATION
To ensure excellent ink adhesion on non-absorbent substrates like BOPP, PET, and foil, the machine includes an integrated corona treater. This pre-treatment activates the surface energy of films, allowing inks, coatings, and adhesives to bond effectively — critical for flexible packaging applications.
Depending on your application and substrate, the machine supports:
– UV Drying: Instant curing for fast production and high gloss finishes
– Hot Air Drying: Ideal for water-based or solvent-based inks and coatings
– LED UV Drying: Energy-efficient, cool-curing technology with longer lamp life and reduced heat load
This flexibility makes the machine suitable for a wide range of inks and substrates.
– UV Drying: Instant curing for fast production and high gloss finishes
– Hot Air Drying: Ideal for water-based or solvent-based inks and coatings
– LED UV Drying: Energy-efficient, cool-curing technology with longer lamp life and reduced heat load
This flexibility makes the machine suitable for a wide range of inks and substrates.
For 100% quality assurance, a high-resolution camera inspection system continuously monitors print quality in real time. It detects color shifts, registration issues, smudging, and defects — reducing wastage and ensuring brand consistency on every meter of printed substrate.
To minimize downtime and reduce manual intervention, the press features an automated blanket cleaning system. This allows for quick and efficient cleaning during job changes or extended runs, improving uptime, print quality, and operator comfort.
This machine supports precise insetting (re-registration) for multi-pass printing jobs — perfect for adding variable data, reverse printing, or specialty finishes in a second run. The advanced register control ensures perfect alignment between passes.
A built-in turnbar system allows for reverse-side printing without manually flipping the roll. This is essential for multi-layer flexible packaging, such as pouch laminates, where both surfaces require print or coatings.
For carton or label applications, an optional die-cutting station can be added inline. This allows printing and cutting in one go, reducing process steps, handling time, and the need for separate post-print finishing lines.
For board or sheeted jobs, a sheeter/conveyor delivery unit is available. It enables automatic cutting of printed web into sheets and conveys them neatly for stacking, collection, or further offline finishing.
The hybrid platform is built to grow with your business. Need an extra flexo unit? A digital inkjet module? Another curing section? Just add it. The machine’s modular architecture allows seamless expansion and future upgrades without major rework.
HYBRID OFFSET PRINTING MACHINE Technical Specifications
| Max Web Width | 650mm, 850mm, 1000mm |
|---|---|
| Substrate | Flexible Packaging, Labels, Paper, Foil, Mono Cartons |
| Machine Type | Semi servo/Full servo |
| Max Parent Reel Dia | 1200 mm |
| No. of Colors | Up to 12 |
| Printing Repeat | 9” to 20”, 24”-36” |
| Output | Reel, Sheets |
| Rewind Dia | 800mm |
| Die Cut | Up to 3 Unit |
| Speed | 150m/min (Depend on Substrate) |
| Flexo/Rotogravure unit | As per the requirements |

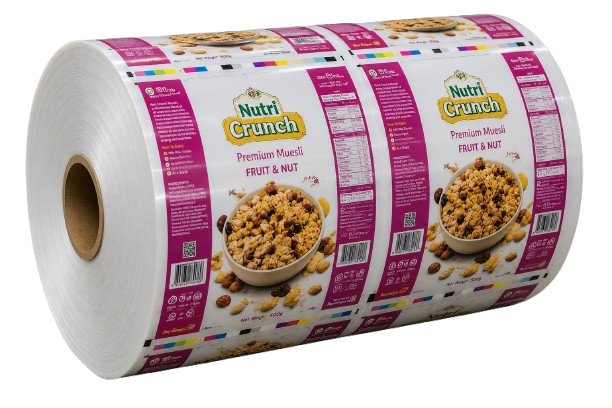

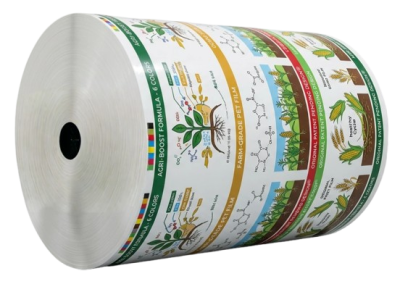

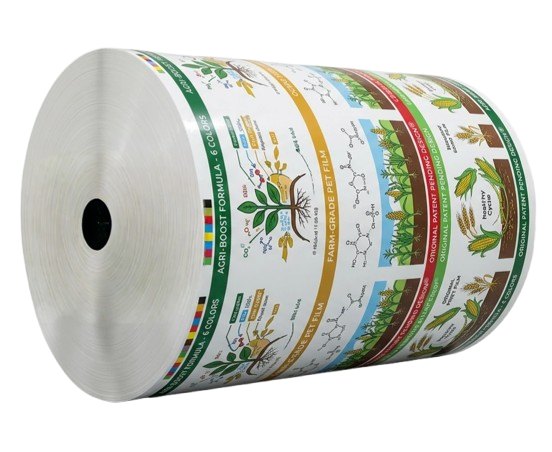

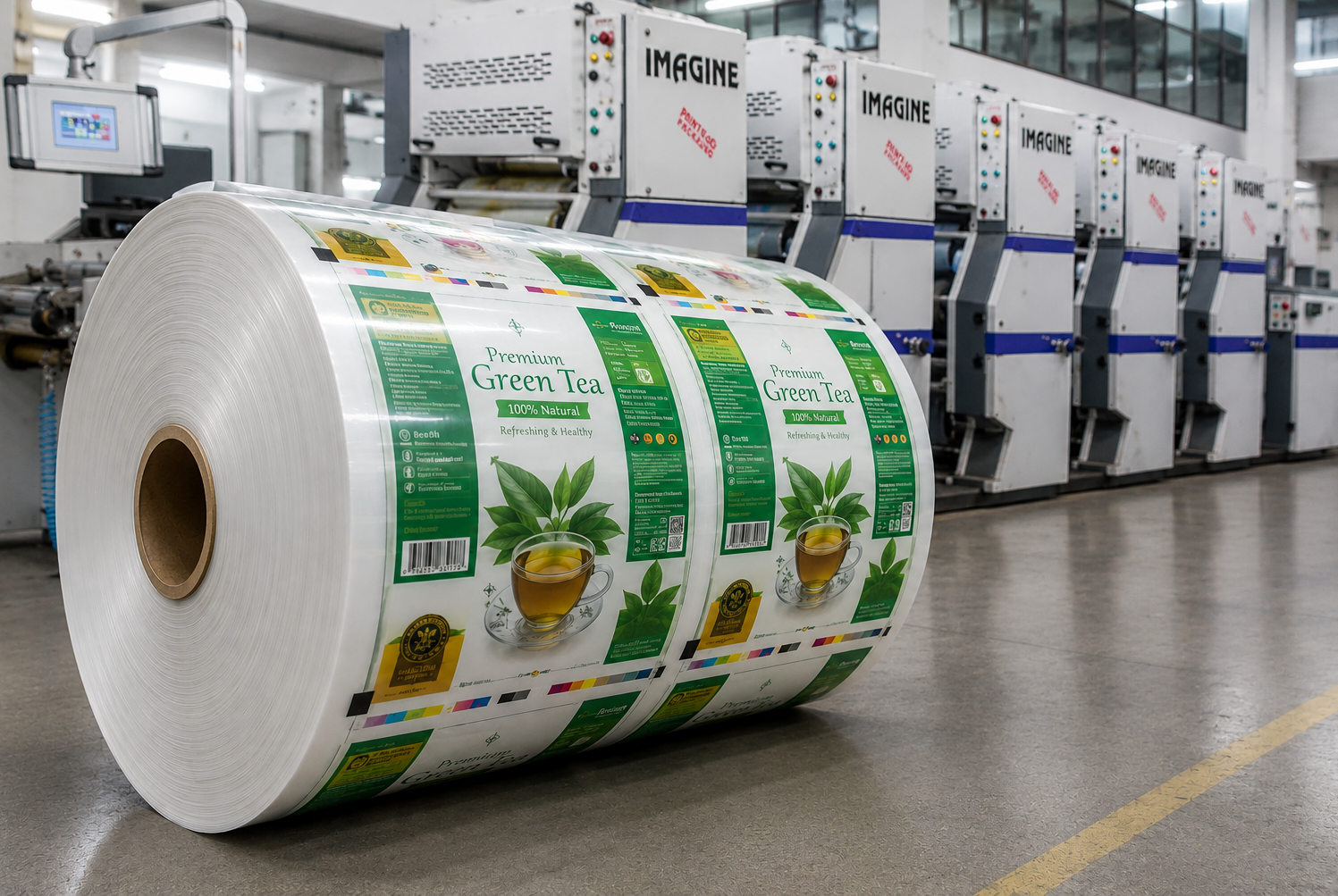

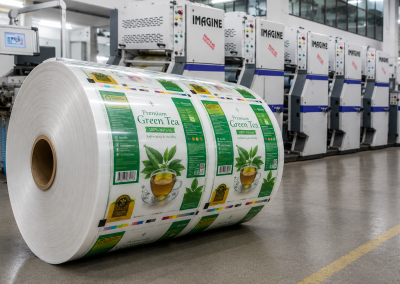

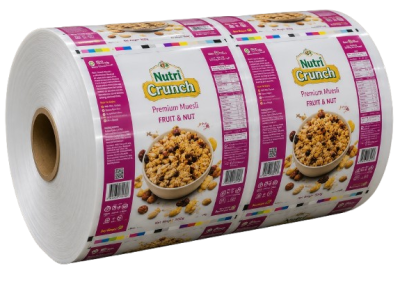

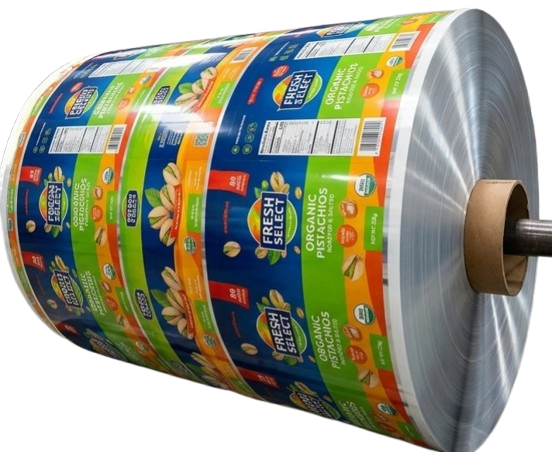

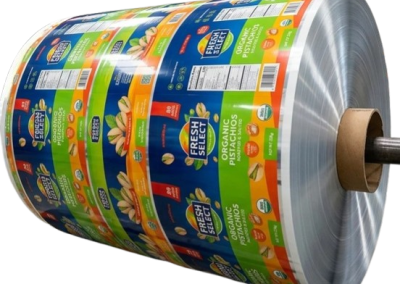

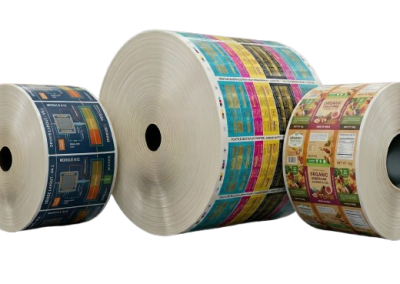

HYBRID OFFSET PRINTING MACHINE Product Samples
