FLAT BED DIE-CUTTING MACHINE
FLAT BED DIE-CUTTING MACHINE
The Flat Bed Die-Cutting Machine is the ultimate solution for manufacturers who demand absolute cutting accuracy, flexibility in materials, and superior edge definition. Designed for applications where intricate detail, variable run sizes, and a variety of substrates are the norm, this machine delivers perfection one impression at a time.
Unlike rotary systems, the flatbed method uses a stationary die that stamps down onto the substrate in a precise, vertical motion, ensuring even cutting pressure across the entire web section. This allows it to handle thicker materials, complex shapes, and multi-depth cuts with unmatched control.
The process begins with the roll-fed material positioned beneath the die. As the platen presses the die evenly against the anvil surface, every cut is clean, consistent, and burr-free-whether it’s for mono cartons, half cut for labels or specialty printed products. The result is a premium finish that meets the highest standards of packaging labels and industrial product design.
With its ability to process short runs, custom shapes, and high-value specialty work efficiently, the Flat Bed Die-Cutting Machine is a go-to choice for industries such as luxury packaging, POP displays, custom labels, and protective inserts.
FLAT BED DIE-CUTTING MACHINE Key Features
UNMATCHED PRECISION CUTTING- ENGINEERED FOR COMPLEX SHAPES & MULTI-DEPTH CUTS
- ROBUST, INDUSTRIAL-GRADE CONSTRUCTION
- PRECISION REGISTRATION FOR PRINTED LABELS
- QUICK SETUP & CHANGEOVER EFFICIENCY
- CONSISTENT PRESSURE CONTROL
- OPERATOR-FRIENDLY & FAST SETUP
- WASTE-FREE MATRIX STRIPPING
- HIGH-PRECISION LABEL REWINDER (for roll-to-roll output)
- WASTE MATRIX REMOVAL & REWIND SYSTEM
The flatbed system delivers absolute accuracy by applying uniform vertical pressure across the entire cutting area. This ensures sharp, burr-free edges and perfect consistency from the first sheet to the last — even on intricate designs or tight tolerances.
Handles simple outlines, deep through-cuts, kiss-cuts, embossing, half cut and creasing in a single pass. Multi-depth capability allows for creative packaging solutions without compromising material integrity.
Heavy-duty side frames, hardened platens, and precision-guided alignment systems ensure vibration-free operation, minimal wear, and decades of dependable performance in demanding production environments.
Advanced registration technology synchronizes die positioning with printed artwork to micron-level accuracy, ensuring flawless alignment. This prevents any misalignment or drift, delivering perfectly cut labels exactly as designed.
Tool-free adjustments, fast die change systems, and operator-friendly controls reduce downtime, making it ideal for both short-run custom jobs and high-volume production.
Advanced platen mechanisms maintain exact pressure calibration across every cycle, preventing incomplete cuts or over-pressing, even with variable material thicknesses.
Quick-change die mounts, intuitive controls, and easy web threading reduce downtime and allow fast job changeovers.
Integrated waste removal keeps the work area clean, maximizes usable label output, and saves on post-processing labour.
Rewinds finished labels into tight, uniform rolls for immediate packaging or use in label applicators.
Automatically strips and rewinds the matrix, ensuring clean rolls and minimizing downtime.
FLAT BED DIE-CUTTING MACHINE Accessories
- HEAVY-DUTY ROLL UNWINDER WITH TENSION CONTROL
- AUTOMATIC SHEETER UNIT (for roll-to-sheet output)
- KISS-CUTTING ATTACHMENT
- PERFORATION & CREASING MODULES
- WEB GUIDE & TRACKING SYSTEM
- ADJUSTABLE ANVIL ROLLER
- SAFETY & CLEANROOM-READY SYSTEMS
- HOT FOILING SYSTEM
- FOIL SAVER SYSTEM
Feeds both printed and blank rolls smoothly into the cutting section with precise, consistent web tension.
Cuts and stacks sheets with precision for ready-to-pack or ready-to-distribute label sets.
Delivers peel-and-apply label production by cutting only the top layer and preserving the backing liner intact.
Enable tear-off sections, folding guides, and special packaging features for added product versatility.
Keeps the material perfectly aligned throughout the process for flawless die registration.
Fine-tunes cutting pressure for different materials and thicknesses, ensuring perfect cuts without liner damage.
Light curtain safety barriers, enclosed cutting zones, and optional dust extraction for safe, clean, and compliant operation.
Adds a luxurious metallic finish with precise heat and pressure. Ensures sharp detail, perfect registration, and consistent brilliance for premium packaging and stationery.
Smart foil control that reduces wastage up to 50%. Advances foil only on print areas for efficient, eco-friendly, and cost-saving operation.
FLAT BED DIE-CUTTING MACHINE Technical Specifications
| Registration Control By | 360° Gearbox System |
|---|---|
| Cutting speed | 20-250cycle/min |
| Max. unwind diameter | 500mm |
| Max. web width | 330mm (Customizable) |
| Max. die cutting width | 310mm |
| Max. die cutting length | 300mm |
| Positioning accuracy | +0.1mm |

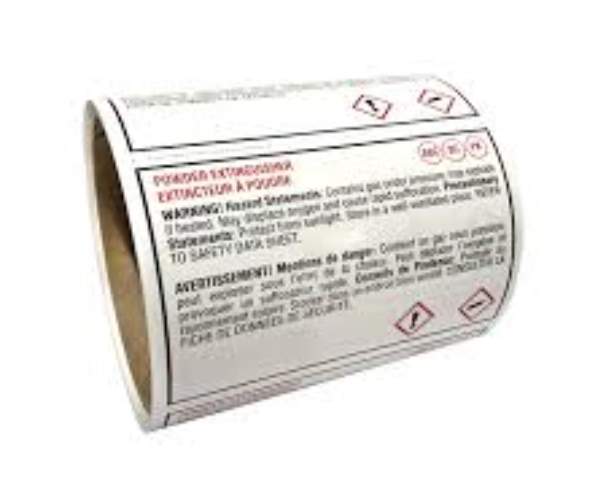

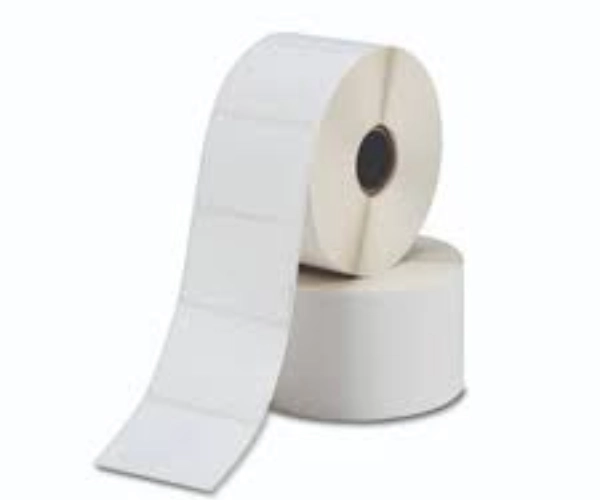

FLAT BED DIE-CUTTING MACHINE Product Samples
