A4/A3 SHEET CUTTING MACHINE

A4/A3 SHEET CUTTING MACHINE

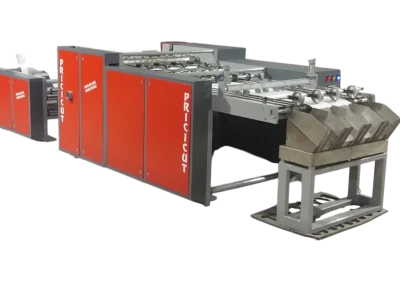

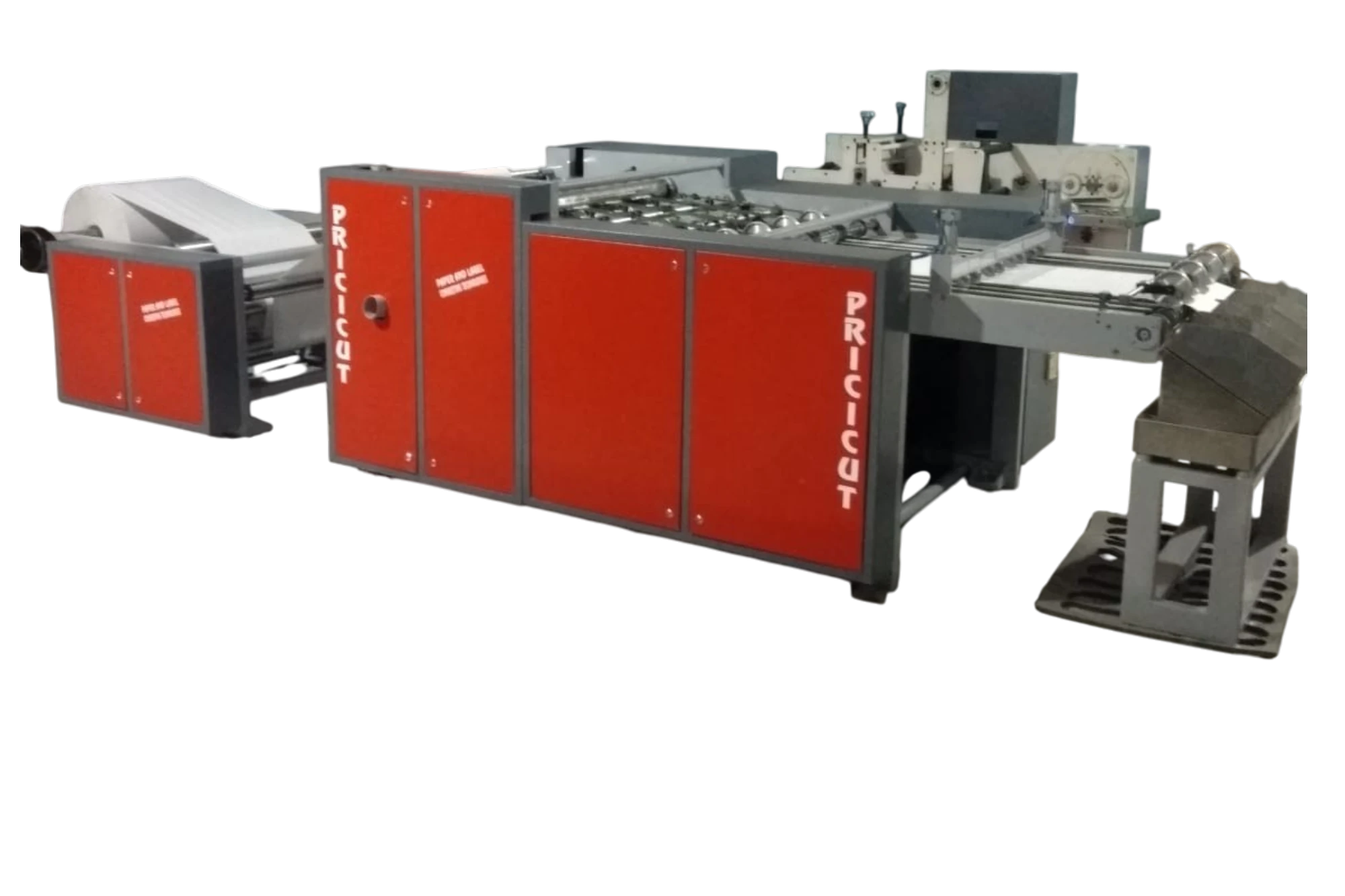

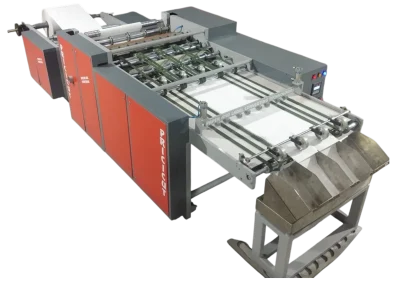

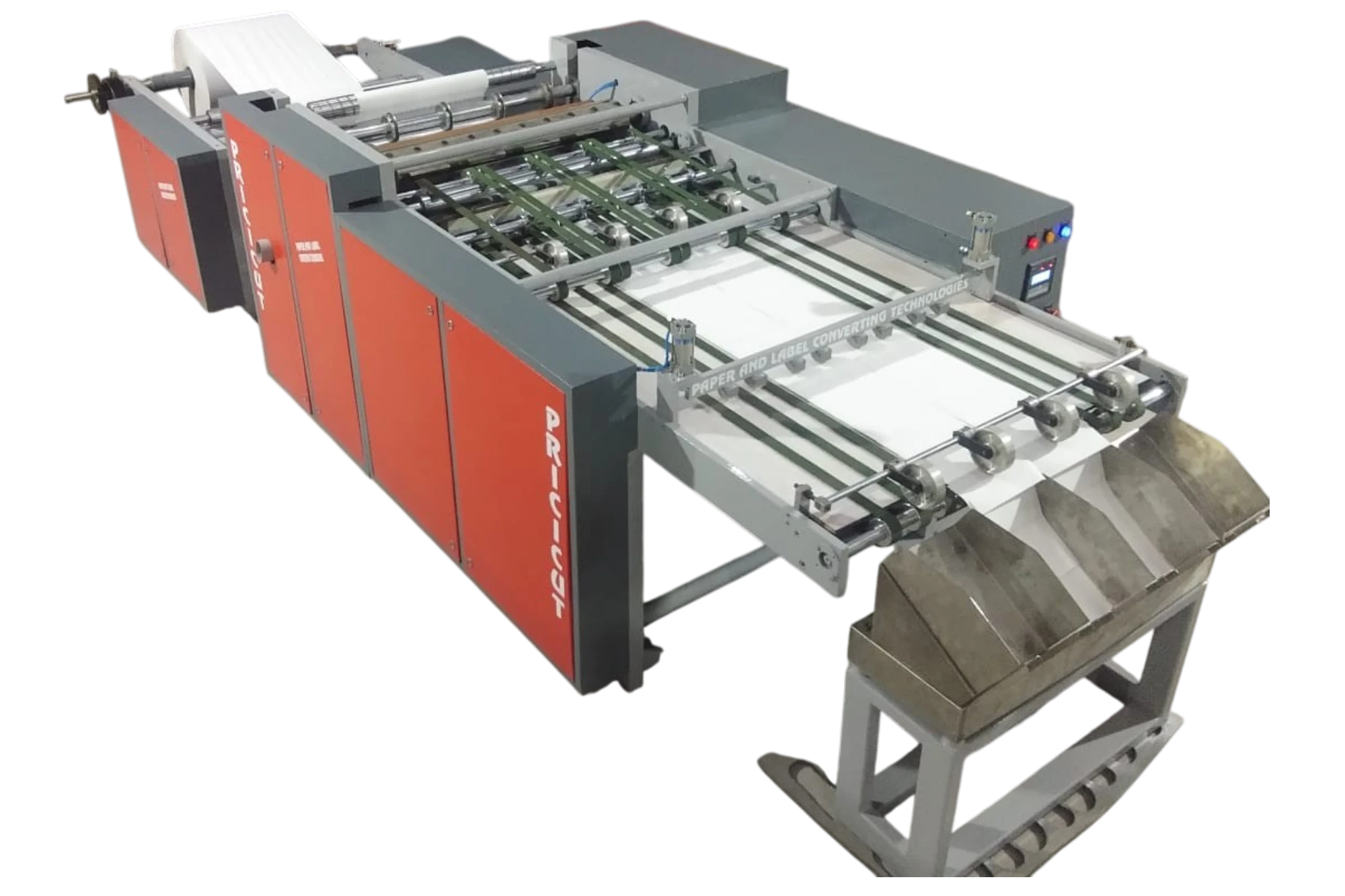

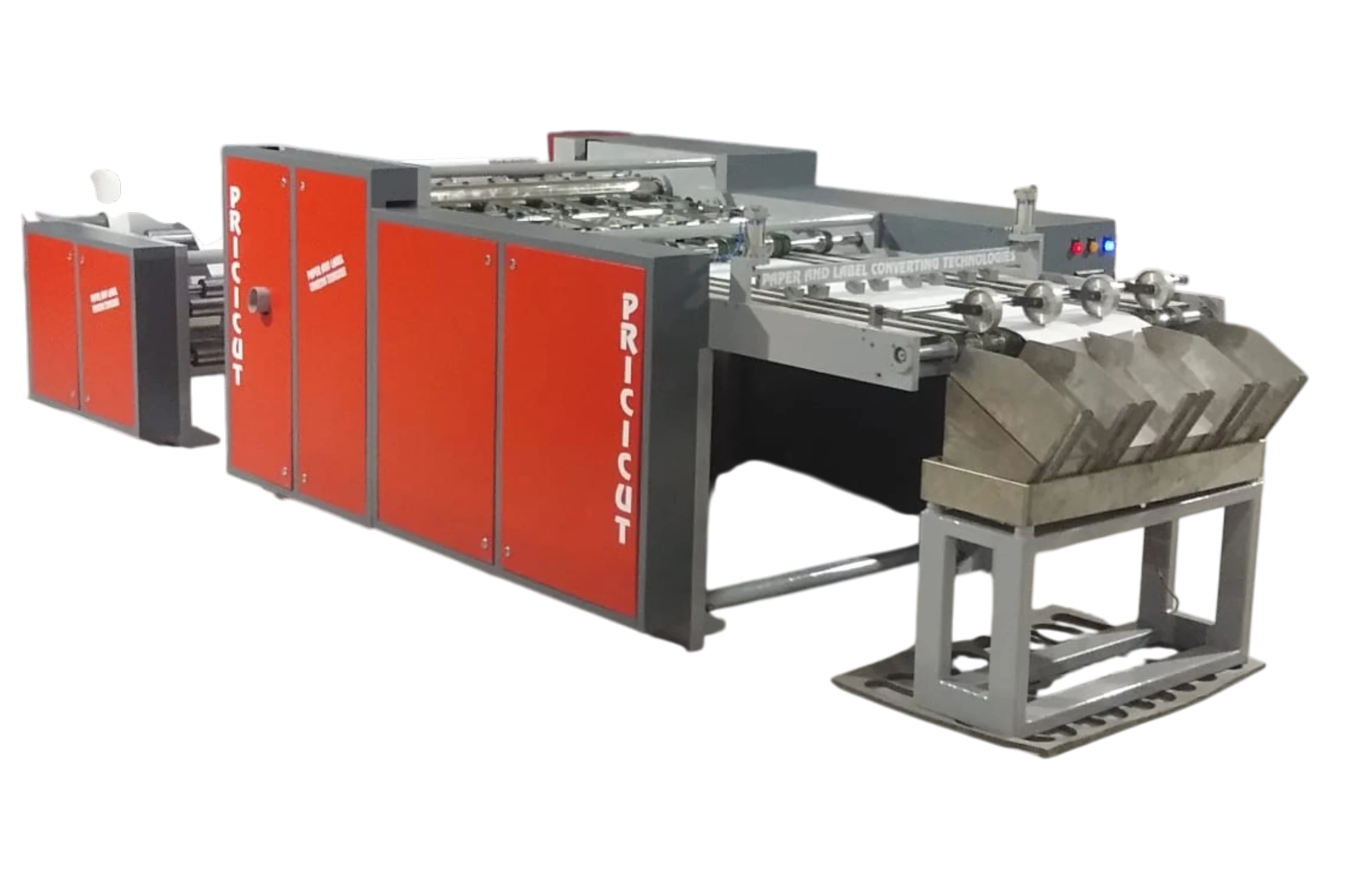

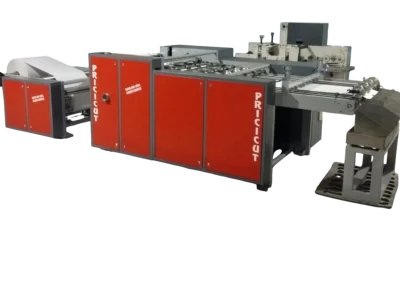

Introducing the Prici Cut Sheeter-an advanced and precision-engineered solution designed to convert jumbo paper rolls directly into flawless A4 and A3 sheets with minimal waste. Engineered for high-speed production, this sheeter delivers consistently accurate sheet sizes, ideal for copier paper manufacturing with or without printing.

Equipped with a sophisticated PLC-controlled system, the machine offers seamless automation including auto batch and sheet counting to ensure perfectly formed reams every cycle. The intelligent PLC control enables continuous operation by automatically separating completed reams without halting production, significantly boosting throughput while optimizing power consumption.

Our sheeter employs a dual rotary knife system for precise slitting from both top and bottom, coupled with advanced dead and fly shear knives to guarantee clean, burr-free sheet cutting. The output is carefully handled by a combination of fast and slow conveyors to ensure perfect stacking, producing uniform reams ready for packaging.

Designed for efficiency, durability, and reliability, the Prici Cut Sheeter is the ideal choice for high-volume paper conversion, maximizing productivity while maintaining superior sheet quality and consistency.

if22
if23
blog
if24
if34
if30
if31
if33

A4/A3 SHEET CUTTING MACHINE Key Features

– Designed to handle jumbo rolls up to 1200 mm diameter, mounted on either hydraulic or pneumatic reel stands.
– Precision tension controls ensure stable unwinding even at high speeds, preventing web breaks or wrinkles.
– Optional shaftless or pneumatic shaft systems for quick roll changeovers and reduced downtime.

– The paper web is guided through aluminium and Anodized rollers for smooth, scratch-free transport.
– Pneumatic Dancing Roller System ensures stable web tension, essential for high-accuracy sheeting.

– Unlike guillotine cutters, this machine uses rotary knives (cross rotary or slitting knives) for continuous, high-speed, vibration-free cutting.
– Servo-driven cutting unit (optional) guarantees ±0.1 mm accuracy, even at maximum production speeds.
– Capable of cutting A4 size (210 × 297 mm) as standard, with flexibility to produce A3, A2, A5 formatsthrough settings.

– After cutting, sheets are aligned, and stacked automatically into neat reams.
– Advanced stacking mechanism ensures perfect ream quality, eliminating manual alignment work.
– Operators can directly collect finished reams (e.g., 500 sheets per stack) ready for wrapping or downstream packaging.
– Reduces manual intervention, ensuring continuous operation with consistent accuracy.

– Equipped with trim blowers’ system to automatically remove edge trims and dust.
– Prevents contamination of finished sheets, keeping both the machine and output clean and professional.
– Reduces downtime by eliminating frequent cleaning needs.
– Centralized PLC + HMI control panel allows operators to set sheet size, speed, and job parameters with ease.
– Real-time monitoring of production, including sheet count, roll balance, and error alerts.
– Capable of running at speeds up to 150-200 meters per minute(depending on GSM & Quality).
– Suitable for substrates ranging from 45 gsm lightweight paper up to 650 gsm.
– Ensures smooth sheet edges, precise dimensions, and uniform quality, run after run.
– Eliminates static build-up generated during high-speed web travel.
– Ensures smooth and accurate sheet transfer during sheeting and stacking.
– Prevents sticking, misfeeds, and double-sheeting for consistent operation.
– Especially vital when processing lightweight or coated papers.

A4/A3 SHEET CUTTING MACHINE Accessories

Upgrade to a servo-driven cutting system for unmatched accuracy and speed consistency. Servo technology ensures razor-sharp cuts, stable sheet length control, and smooth operation even at maximum speed. Ideal for converters handling a wide range of substrates or demanding ultra-precise A4 production.
An integrated trim blower efficiently removes edge trims and waste strips during cutting. This ensures a dust-free, clean sheet path, prevents contamination of finished sheets, and maintains uninterrupted high-speed production.
The machine comes with an inbuilt automatic counting system that precisely counts sheets during production. For enhanced automation, it can be directly integrated with a ream wrapping or packaging line—delivering ready-to-dispatch reams without manual handling. This ensures higher productivity, consistency, and professional packaging quality.
For printed materials requiring flawless registration, the web guide ensures the web runs with perfect edge alignment throughout the process. This eliminates skew, misalignment, or trimming errors—delivering perfectly registered sheets with zero compromise on quality.

Designed with scalability in mind, the machine allows additional reel stands to be integrated whenever production demands increase. By enabling multiple jumbo rolls to be fed simultaneously, converters can dramatically boost throughput, reduce downtime from roll changes, and maintain uninterrupted high-speed operation. This future-ready flexibility ensures your machine investment continues to deliver higher productivity as your business grows.

A4/A3 SHEET CUTTING MACHINE Technical Specifications

Registration Control By Dual Servo System (ARC)
Web Width 430mm to 1280mm
Reel Diameter 1200mm
Reel Stand Upto 8 No.
Draw Roller 1 No.
Contact Roller 1 No.
Study Blade 1 No.
Rotary Blade 1 No.
Sheet length A4 Size, Variable
Paper Gsm 45 to 640
No. of Packets  2 to 6
Speed 50-200 Meter Per min (Depend on Substrate)
Drive Depends On Machine Specification
