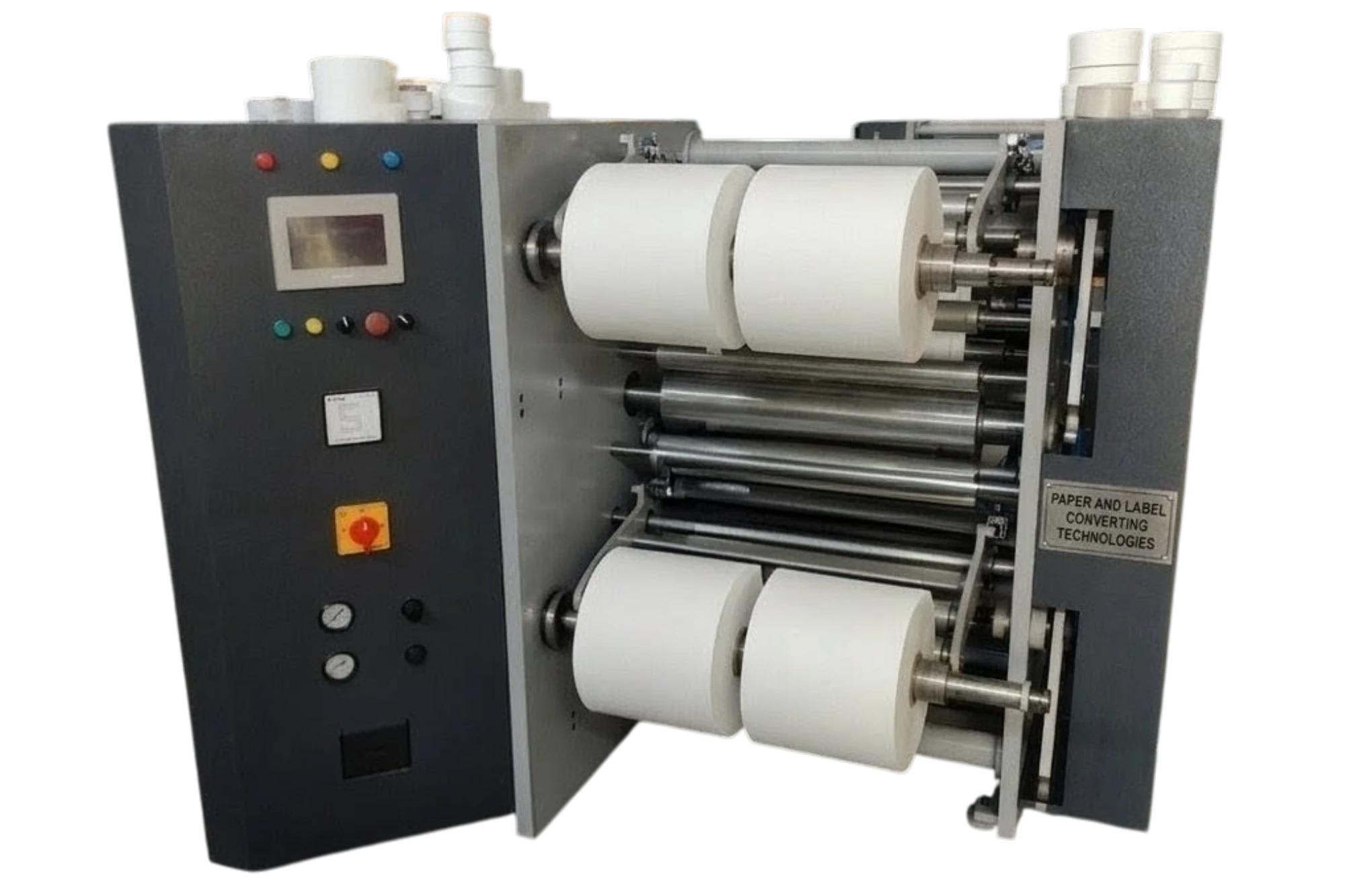

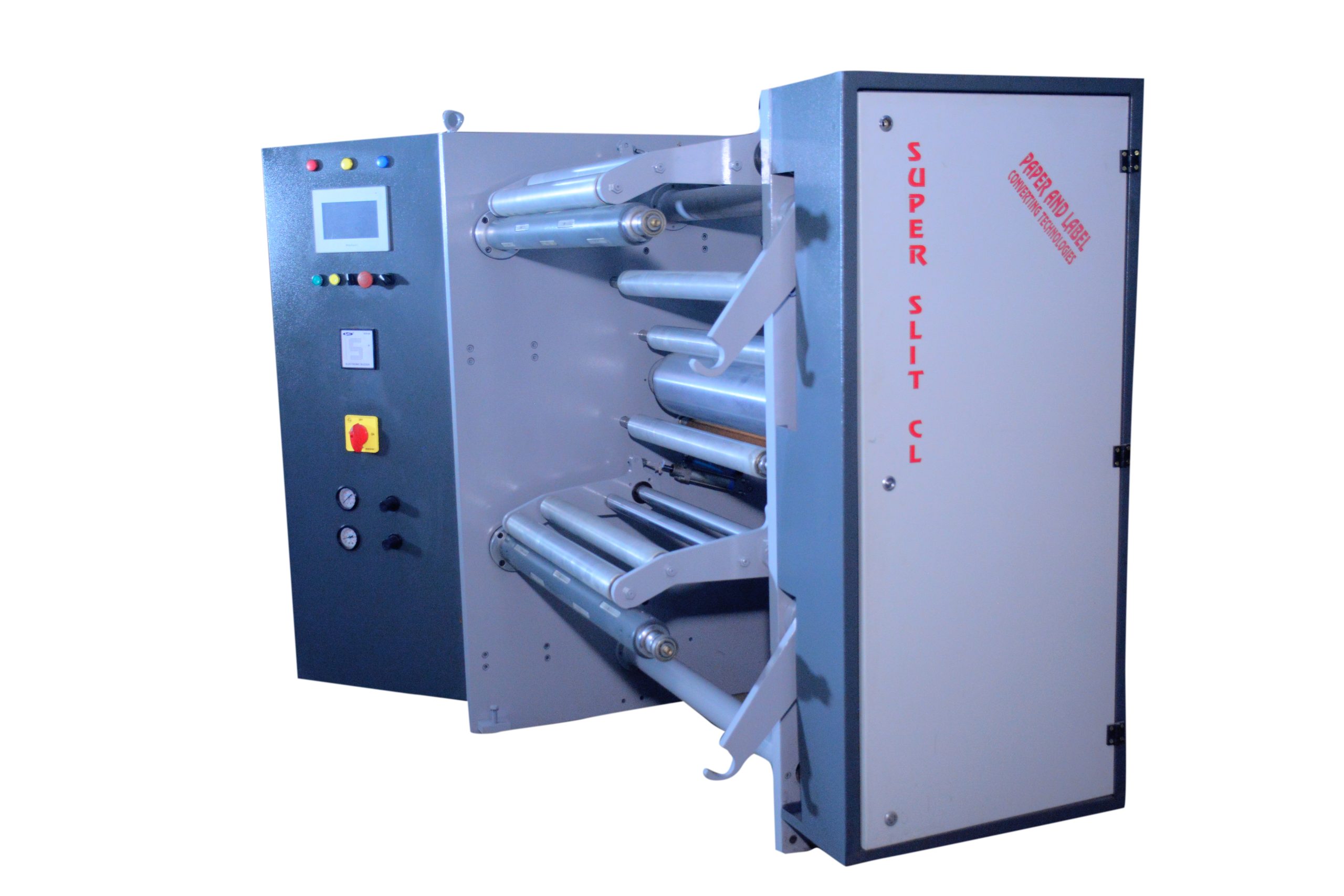

CANTILEVER SLITTER REWINDER MACHINE
CANTILEVER SLITTER REWINDER MACHINE
HIGH-PERFORMANCE SLITTING & REWINDING WITH EASY ROLL HANDLING
The Dual Shaft Cantilever Slitter Rewinder is a next-generation solution designed to handle a broad spectrum of substrates including paper, film, foils, laminates, label stock, and flexible packaging materials. Unlike conventional shaft systems, its cantilever design makes roll loading and unloading faster, safer, and more ergonomic- saving operator time while boosting efficiency.
The Dual Shaft Cantilever Slitter Rewinder is a next-generation solution designed to handle a broad spectrum of substrates including paper, film, foils, laminates, label stock, and flexible packaging materials. Unlike conventional shaft systems, its cantilever design makes roll loading and unloading faster, safer, and more ergonomic- saving operator time while boosting efficiency.
This machine is built for continuous high-speed production with uncompromising accuracy, offering converters the perfect balance between precision slitting, stable web handling, and superior rewinding quality. With advanced tension control, rugged mechanics, and intelligent automation, it delivers rolls of excellent consistency—making it the preferred choice for packaging, label, and industrial converting industries.
CANTILEVER SLITTER REWINDER MACHINE Key Features
CANTILEVER SHAFT DESIGN FOR EASY HANDLING- AUTOMATIC PNEUMATIC/HYDRAULIC ROLL LOADING
- HIGH-PRECISION SLITTING TECHNOLOGY
- SUPERIOR REWINDING PERFORMANCE WITH SERVO CONTROL
- AUTOMATIC TENSION CONTROL SYSTEM
- WEB STABILITY AND SMOOTH RUNNING
- WEB GUIDING SYSTEM (EDGE/LINE GUIDE)
- ADVANCED PLC + HMI TOUCHSCREEN CONTROL
- SAFETY & RELIABILITY BUILT-IN
The heart of the machine is its dual cantilever rewind shafts. Operators can load cores and remove finished rolls directly without struggling with heavy shafts. This not only reduces fatigue but also cuts down changeover time dramatically, keeping production running smoothly.
Jumbo stock rolls can be loaded and unloaded with pneumatic or hydraulic reel stands, ensuring stable handling of heavy rolls and minimizing operator strain. This feature guarantees safer, faster changeovers while keeping production continuous.
Supports razor and rotary cutters for slitting films, paper, labels, laminates and paperboard. This flexibility ensures clean, burr-free edges regardless of material type or thickness, giving consistently perfect rolls for downstream processes.
The rewinding section incorporates differential or pneumatic shafts, ensuring even tension distribution across multiple slit rolls. With servo control, winding accuracy reaches a new level, preventing issues like telescoping, air gaps, or core crushing.
Equipped with the servo control systems which automatically adjusts web tension at both unwinding and rewinding stages. This guarantees smooth running at speeds of 300-350 meters/min while avoiding web stretching or snapping.
Precision-engineered nip and lay-on rollers keep the web steady, ensuring clean slits and even winding. The anti-wrinkle system further enhances web flatness, even at high speeds.
Ensures precise tracking of the web before slitting, critical for printed or pre-processed rolls where accuracy matters most.
Machine control panel offers intuitive operation, real-time diagnostics, and production monitoring. Operators can set and fine-tune parameters with minimal training, ensuring maximum uptime.
Fitted with emergency stop buttons and alarms, the machine ensures operator safety while maintaining uninterrupted performance.
CANTILEVER SLITTER REWINDER MACHINE Optional Accessories
- STATIC ELIMINATOR (Optional)
- TRIM REMOVAL & WASTE COLLECTION
- DIFFERENTIAL/PNEUMATIC REWIND SHAFTS
- ROLL PUSHERS & UNLOADING DEVICES (Optional)
- SERVO DRIVE UPGRADES (OPTIONAL)
- LASER CORE ALIGNMENT SYSTEM
Removes static build-up during high-speed runs, preventing web clinging, dust attraction, and winding issues—especially important when slitting thin plastic films or lightweight papers.
High-pressure pneumatic trim blowers efficiently remove edge trims, keeping the work area clean while ensuring continuous production.
Ideal for slitting multiple roll widths simultaneously. They automatically balance tension across rolls, avoiding telescoping or core crushing.
Assist operators in removing heavy finished rolls safely and easily, minimizing manual handling effort.
For clients requiring precision web synchronization and advanced tension management, servo-driven technology can be integrated as a future-ready upgrade.
Projects a clear laser line for quick and precise core positioning on rewind shafts. Ensures perfect alignment with slitting knives, reduces setup time, and delivers clean, accurate roll winding with superior efficiency.
CANTILEVER SLITTER REWINDER MACHINE Technical Specifications
| Registration Control By | Dual Servo System (ARC) |
|---|---|
| Substrate | Paper, Film, Foil, Laminates, Label Stock |
| Parent Roll Width | 500 – 1600 mm (customizable as per requirement) |
| Rewind Roll Diameter | Up to 600 mm (per shaft, cantilever design) |
| Speed | 300-350 m/min (Depend upon substrates) |
| Paper GSM | 12-250 microns (film/foil) / 40-250 gsm (paper & laminates) |
| Parent Roll Diameter | Up to 1000 mm (customizable) |
| Slitting Width Range | Min. 25 mm and above (depending on material & knife type) |
| Slitting Accuracy | ±0.1 mm |
| Unwind System | Hydraulic or Pneumatic Shaft-less Roll Loading |
| Tension Control | Automatic Tension control (Unwind & Rewind) |
| Edge Guiding System | Yes |
| Power Requirement | 415 V, 50 Hz, 3 Phase (customizable for other standards) |
